It is widely used in industrial assembly, especially in solar module assembly. It has excellent adhesion to all materials involved and does not cause any corrosion to base materials except copper.

Solar module frame sealing

Bonding of solar back panel to junction box

General industrial assembly seals

Before curing

Curing System...............................................Deoxime

Appearance........................................................ Paste

Color.........................................................Black/White

Density(g/cm3).............................................1.40~1.45

Extrusion Rate(g/min)........................................28~80

(Tests are all conducted under the conditions of temperature 23±2°C

and relative humidity 50±5%RH)

After curing

Density (g/cm3)............................................1.40~1.45

Extrusion Rate (g/min).......................................28~80

Applicable Temp Range (°C)..............................-55~200

Mechanical properties after curing for 7 days

Hardness (ShoreA) ................................................40~60

Tensile Strength (MPa) ...............................................2.0

Elongation at Break (%).....................................200~600

Shear Strength (MPa)............................................... ≥1.2

(Tests are all conducted at a temperature of 23±2o C and a relative humidity of 50±5%RH)

Electrical properties

Volume Resistivity (Ω·cm).............................1.0×10

15 Breakdown voltage (kV/mm) ..................................22

Moist heat aging performance (after aging for 2000h at 85°C, 85%RH)

Hardness(ShoreA)................................................≥30

Tensile Strength (MPa)........................................≥1.2

Elongation at Break(%).......................................≥200

How to use

The surface must be clean and dry, free of dust, grease and anything else that would prevent the sealant from adhering properly. Primer: No primer is required on most substrates.

Packing

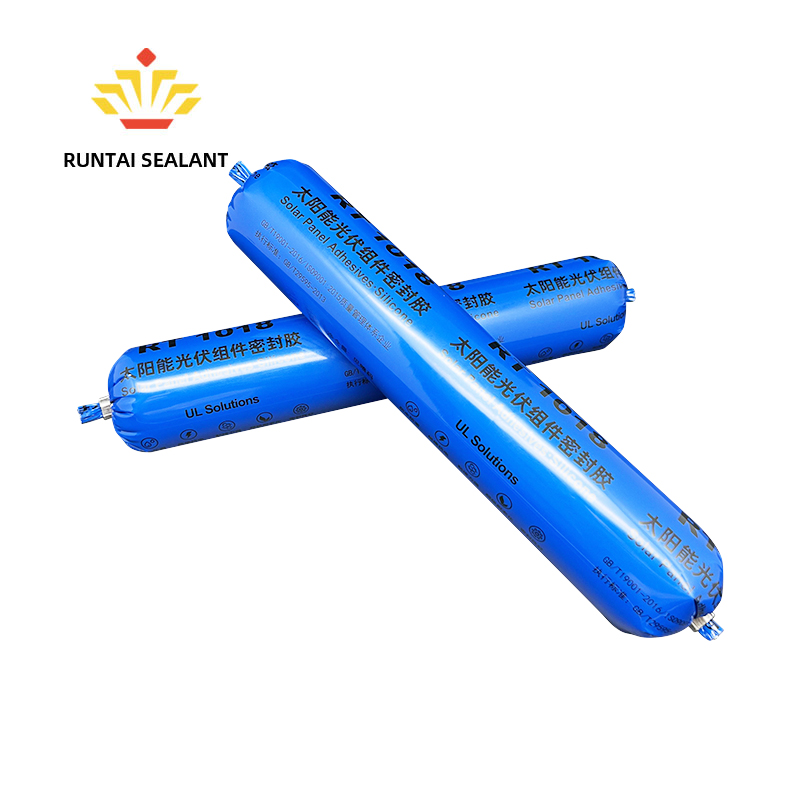

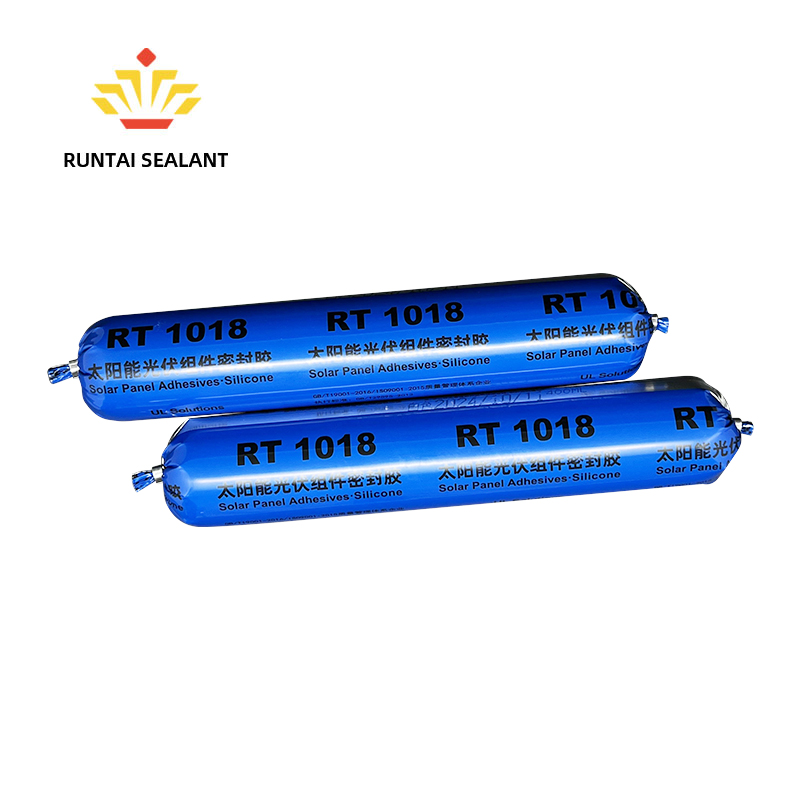

Ordinary packaging 310ml cartridge, 400ml sasuage packaging, 210L drum. It can also be supplied in user-specified packaging.

Storage method and shelf life

Store in a cool, dry place at room temperature.

Shelf life: 12 months from the date of production in original packaging.

Precautions

When applying glue, ensure ventilation. Avoid leaving uncured glue in contact with skin for extended periods of time. If it accidentally splashes into your eyes, rinse quickly with plenty of water and seek medical treatment. This product cannot be used in pure oxygen or oxygen-enriched systems, and cannot be used to seal chlorine or other strongly oxidizing materials. Keep away from children.
